RPS Power Supply Series™ Model RPS5412

RPS Power Supply Series™ Model RPS5412


Optimal Power® rack mount product line RPS Power Supply Series™ is specifically designed by Optimal Power Supplies LLC for NETGEAR®, as the ONLY tested and certified solution for alternative power source for NETGEAR® RPS (Redundant Power Supply) capable switches.

Product Description

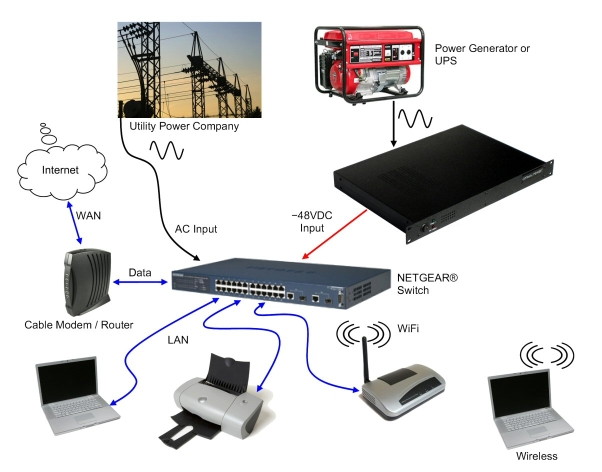

RPS Power Supply Series™ is a unique and a highly reliable power supply series. It is used as a redundant power supply for NETGEAR® RPS capable PoE, 10/100 Ethernet, and Gigabit Ethernet switches. The RPS Power Series™ is designed for Universal AC to DC power supply applications. Because of this feature these power supplies can be used anywhere in the world.

The RPS Power Series™ is designed for Universal AC to DC power supply applications. Because of this feature these power supplies can be used anywhere in the world.

The Model RPS5412 is a 1U rack mountable RPS (Redundant power supply). The RPS has an ON/OFF switch, and an associating DC power LED.



Specifications:

Electrical


Output Voltage-52V DC+12V DC
Output RippleTypical 200mVTypical 120mV
Output CurrentTypical 5.77A max.Typical 9A max
Output Power*300W100W
Input VoltageUniversal 90VAC to 264VAC input
Input Frequency47Hz to 63Hz
Input Current5 Ampere maximum



           Typical Safety Rating

Designed in full compliance withUL60950
 CSA 222 No 234
 EN60950
EMIEN55022 "Class A"
EMSEN61000-4-2,-3,-4,-5,-6,-8,-11
HarmonicsEN61000-3-2 Class D
UL file No.E257685



           Environmental

Overload ProtectionAuto-recovery
Functional Temperature0 to 70 °C
Storage Temperature-20 to 85 °C
Over voltage TypeLatch off
Efficiency80-90% Typical
RoHSYES
Dimensions1U (1.75" H x 19" W x 12.12" D)
Weight Approx.7.75 lb







Model Number Table




Supported
NETGEAR® Switch Model		Optimal Power
RPS Models		Optimal Power
DC Cable		Data SheetManual
GSM7212FRPS5412RPSC5412RPS5412 data sheetRPS5412 manual
GSM7212PRPS5412RPSC5412
GSM7224PRPS5412RPSC5412
GSM7224-200RPS5412RPSC5412
GSM7248-200RPS5412RPSC5412
GSM7228PSRPS5412*RPSC5412
GSM7252PSRPS5412*RPSC5412
GSM7328S-200RPS5412RPSC5412
GSM7352S-200RPS5412RPSC5412
GSM7328FSRPS5412RPSC5412




* NOTE The Model RPS5412 only provides up to 300W for POE application. If POE devices connected to the switch system need more than 300W, then this device is not recommended.

Please contact us at sales@optimal-power.com or 251-209-8088 for information on NETGEAR® RPS systems
