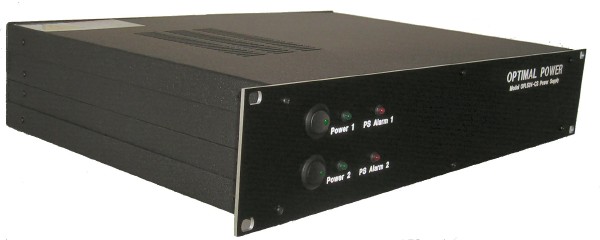

Product Description: OPL Power Series™ is a unique, low noise and a highly reliable power supply series. It can be configured as a single as well as a fully redundant power supply. OPL Power Series™ is designed for Universal AC to DC linear power supply applications. Linear power supplies have inherently low conducted and radiated noise levels, because of this feature these power supplies can be used anywhere in the world where power supply noise is an issue. These power supplies are mainly used in the following applications:
| Linear Power Supply |
OPL Power Series is a reliable, efficient and inexpensive solution for all kind of linear AC to DC power supply applications.
Power Supply Main Features:
|
Power Supply General Specifications:
| Input Voltage | 110VAC to 120VAC (or) 220VAC to 230VAC |
| Input Frequency | 47Hz to 63Hz |
| Operational Temperature | 0°C to 55°C |
| Storage Temperature | -25°C to 85°C |
| Cooling | Forced Air |
| Overload & Short Circuit Protection | Auto-Recovery |
| Efficiency | 80-90% Typical |
| DC OK | TTL Logic or RS485/RS422 Interface or Status LEDs |
Typical Internal Power Supply Brick Safety Specifications:
| Designed in full compliance with | FCC Class B and VDE 0871 for class B |
| EMI | EN55022 "Class B" |
| EMS | EN61000-4-2,-3,-4,-5,-6,-8,-11 |
